薄膜・コーティングのためのAFM

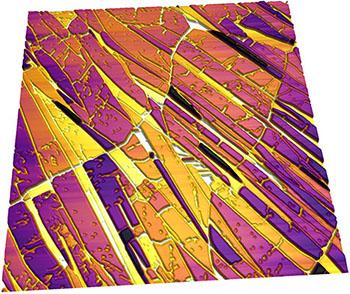

薄膜の原子間力顕微鏡(AFM)像

薄膜やコーティングは、食品包装から太陽光発電まで、あらゆる面で重要な役割を果たしています。そのような多様なニーズを満たすために、それらはあらゆる分野の材料から作られ、また堆積・自己組織化・ゾル-ゲル法などの多数のプロセスによって作製されます。原子間力顕微鏡は、薄膜やコーティングの特性を評価するための強力なツールであり、性能評価に必要とされる重要な情報を提供します。比類のない空間分解能でラフネスやテクスチャを3次元で定量化し、電気的・磁気的・機械的特性など、ナノスケールの機能を測定します。サブナノメートルからマイクロメートルの分解能で、フィルムの特性を評価するためには、固有のディメンジョン(厚さ・粒径・ドメインサイズなど)が重要になります。さらに、これらの長さスケールで機能特性を同時に測定する能力は、対象のアプリケーションに対して、薄膜エンジニアリングの重要な側面となっています。AFMは、薄膜成長過程の開発・最適化・モニタリング、さらに設計経路の合理化における重要な情報を提供して、求められる機能特性を実現します。

AFMに関する技術的なお問い合わせ

メトロロジー

  • 表面粗さ
  • 均一性、多分散性
  • モルフォロジー
  • 粒子解析
  • 膜厚

機械特性

  • 剛性,ヤング率 (フォースカーブ,フォースマッピング,AM-FM,コンタクト共振)
  • 弾性率,損失弾性率,粘弾性ロスタンジェント (AM-FM,コンタクト共振,ロスタンジェントイメージング)
  • エネルギー散逸 (AM-FM,コンタクト共振,ロスタンジェントイメージング,BE)

トライボロジー特性

  • 摩擦 (LFM)
  • 凝着 (フォースカーブ,FFM)
  • 摩耗 (LFM)

電気特性

  • 導電率・誘電率 (sMIM, CAFM)
  • 表面電位 (KPFM)
  • 蓄積電荷 (EFM)
  • I-V プロファイル (CAFM,フォースマッピング)
  • 絶縁破壊 (nanoTDDB)

圧電特性

  • 電気機械的応答 (PFM)
  • ドメイン極性 (PFM)
  • ピエゾ‐ヒステリシス (PFM)

磁気特性

  • 磁気力勾配 (MFM)
  • 磁気ヒステリシス (MFM, VFM)
  • 磁気電気カップリング (MFM, PFM, VFM)

熱特性

  • 熱伝導性 (SThM)
  • 熱機械的応答 (SThM)
  • 相転移 (SThM)

一般的な用途

  • バッテリーとエネルギー貯蔵
  • 生体適合性
  • 腐食と防汚
  • データストレージ
  • 強誘電体と圧電体
  • 光学
  • 太陽光発電・光起電
  • 半導体およびマイクロエレクトロニクス産業
  • MEMS(微小電気機械システム)を含むセンサーとアクチュエータ
  • 生体組織工学および幹細胞研究
  • トライボロジー

一般的な薄膜析出プロセス

  • ALD (atomic layer deposition; 原子層堆積法)
  • CVD (chemical vapor deposition; 化学蒸着法)
  • MBE (molecular beam epitaxy; 分子線エピタキシ法)
  • PLD (pulsed laser deposition; パルスレーザー堆積法)
  • PVD (physical vapor deposition; 物理蒸着法)
  • 自己組織化 (Self assembly)
  • スパッタリング
  • スピンキャスティング
  • 加熱蒸散
