ポリマーサイエンス研究のためのAFM

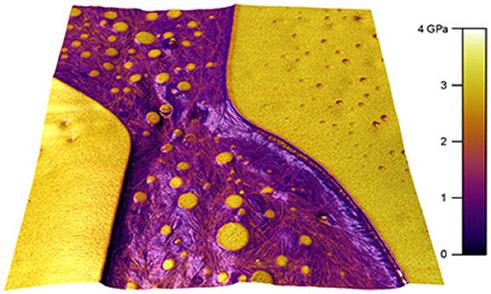

ポリマーブレンドの弾性率マップ

ポリマーは、日常生活のいたるところで利用されており、多くの材料研究のテーマとなっています。ポリマーの物性は多様であり、原子間力顕微鏡(AFM)はさまざまなレベルの研究において、非常に優れたツールとなります。高分子膜の精密な形状測定はもちろんのこと、幅広いAFMのテクニックがアサイラム・リサーチの装置で利用できます。結晶中の分子鎖配列や、ドメインの弾性率・導電性など多岐にわたり、ポリマー物性の多様な研究が可能となります。

AFMに関する技術的なお問い合わせ

機能・性能

  • 表面の形態および粗さの測定
  • 粘弾性(AM-FMおよびCR-DART)を含む、定量的なナノメカニカル特性(ナノ力学特性)
  • 結晶化と融解のプロセスを観察するための高速イメージング
  • サンプルの加熱・冷却制御
  • 光導電性や電気化学歪みといった電気的測定
  • サンプル周囲の気体の種類や湿度の環境制御
  • 熱分析(SThM)
  • リソグラフィー内蔵ツール
  • 1分子フォーススペクトロスコピー実験

一般的な用途

  • ポリマーブレンドや高分子複合材料のナノメカニカル(弾性率・粘弾性)特性
  • 市販包装材の品質試験
  • 層の厚さや均一性の測定
  • 材料の歪み試験
  • 有機エレクトロニクス ー 有機太陽電池の光導電性
  • 単鎖ポリマーの引伸ばし
  • 熱相転移 ー 融解と結晶化

下のリストより技術資料(英文)のダウンロードをご利用いただけます。
日本語版をご希望の場合にはこちらからご連絡ください。
